AHP-55 Liquid Phase Vessels
Ecologix AHP-55 Liquid Phase Vessels charged with our OrganoClay media are designed for the removal free floating oil droplets and sheens in water. Commonly used before other carbon vessels. This can alleviate the need for an oil water separator only if oil amounts are small.
The AHP-55 Series Liquid Phase Vessels - Will not bulge, leak or rust apart. The top is made of heavy gauge domed steel and powder coated for durability. The interior has dual liners and a heavy domed internal bottom. Each has a built in 30 psi pressure relief valve, influent and effluent sample and pressure ports. Inlet and outlet on top. All canisters are pressure tested before shipping.
AHP-55 Liquid Phase Vessels + MCM-830P OrganoClay
Ecologix OrganoClay - MCM-830P - is a modified clay mineral designed for use as a filter media in process and wastewater treatment. The product effectively removes a wide range of hydrocarbons and trace amounts of heavy metals from water. Unlike competitive filter media, Ecologix OrganoClay - MCM-830P does not swell or blind when absorbing contaminants, so it need not be blended with anthracite filler.
The main difference between Ecologix OrganoClay - MCM-830P and other OrganoClay is that our media is 100% non-swelling modified clay and does not require blending with anthracite for porosity in a filter bed. This means that filter beds typically run 2-3x longer than filters using competitive (30/70 and 40/60 - clay/anthracite blends). In addition, because Ecologix OrganoClay - MCM-830P has a greater amount of "actives," it may also remove contaminants present at lower levels better than competitive media.
AHP-55 Liquid Phase Vessels Specifications
| Model | Max PSI | Max GPM | Media | Lbs of Media | Inlet / Outlet |
|---|---|---|---|---|---|
| AHP-55-MCM-830P | 30 | 27 | MCM-830P OrganoClay | 200 - 250 | 2" / 2" |
AHP-55 Sample Pressure Kit
The AHP-55 pressure kit comes with two (2) 1/4" PVC valves, tees and pressure gauges (0-60 psi). Comes pre-assembled and threads directly into the ports on the AHP-55 top. Makes it easy to check pressure drop across the carbon and to get convenient influent and effluent water samples.
AHP-55 Connection Kit
The AHP-55 Connection Kit is available pre-assembled and allows easy connection to additional AHP-55's in series or parallel. Connections are 1" female cam lock in and out. Allows easy switch of flow direction for occasional backwashing.

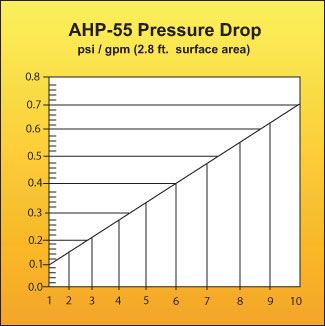

AHP-55 Pressure Drop Chart
