Polypropylene Pleated Filter Cartridges
Ecologix Polypropylene Pleated Filter Cartridges provide a high area, 100% polypropylene element for removal of fine or coarse particulate from fluid streams. Commonly used in food/beverage and chemical applications as a final filter or prefiltration stage.
The pleated depth media is encapsulated in an integral, continuous-length, thermally-bonded structure for cleanliness, pressure tolerance, and chemical inertness. Offered in both absolute-rated (up to 99.98% retention) and nominally-rated (90% retention) grades in all end configurations. Manufactured in a clean-room environment to maintain high standards of purity and cleanliness.
Filtration Applications
- Food & Beverage
- Deionized Water
- R.O. Pre-Filtration
- Process Water
- Fine Chemicals
- Plating Chemicals
- Wastewater
- Pharmaceutical Prefiltration

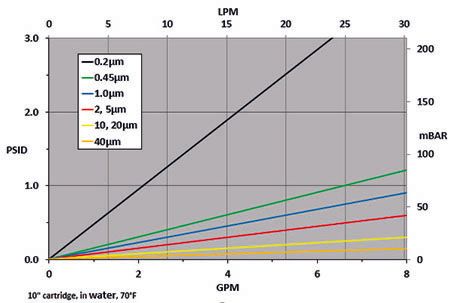

Flow Rate vs Pressure Drop
Construction Materials
- Filtration Media: Polypropylene
- Support Media: Polypropylene
- End Caps: Polypropylene
- Center Core: Polypropylene
- Outer Support Cage: Polypropylene
- O-Rings/Gaskets: Buna, EPDM, Silicone, Teflon® Encapsulated Viton®, Viton®, Teflon® Encapsulated Silicone
Dimension (Nominal)
| Length | 10 to 40 in (25.4 to 101.6 cm) |
|---|---|
| Outside Diameter | 2.70 in (7.0 cm) |
Operating Conditions
| Change Out ∆P (recommended) | 35 PSID (2.4 bar) |
|---|---|
| Temperature (max) | 176˚F (80˚C) |
| Differential Pressure (max) | 60 PSID (4.1 bar) at 68˚F (20˚C) |
Sanitization/Sterilization
| Filtered Hot Water | 176˚F (80˚C) for 30 min |
|---|---|
| Steam Sterilization | 250˚F (121˚C) for 30 min multiple cycles |
Chemicals: Cartridges are compatible with most chemical sanitizing agents.
Note: Stainless steel insert option required for all cartridges being hot water sanitized
or steam sterilized.
Food Safety Compliance
Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations, 21CFR. Materials used to produce filter media and hardware are deemed safe for use in contact with foodstuffs in accordance with EU Directives 1935/2004, and/or 10/2011.
Toxicity
All polypropylene components meet the specifications for biological safety per USP Class VI - 121˚C for plastics.
Polypropylene Pleated Filter Cartridges - Ordering Details
| Rating (µ) | Retention | Length | End Cap Style | O-Rings/Gaskets | Adders |
|---|---|---|---|---|---|
| 0.2 | A = Absolute | 10" (25.4 cm) | 2 = DOE Flat Gasket12 | B = Buna | CS = 316SS Compression Spring (TB ONLY) |
| 0.45 | N= Nominal | 20" (50.8 cm) | 3 = 222 w/Fin | E = EPDM | FG = Glass Reinforced PP Core3 |
| 1.0 | 30" (76.2 cm) | 4 = 222 w/Flat Cap | S = Silicone | HP = Heavy Poly Core3 | |
| 2.0 | 40" (101.6 cm) | 5 = 222 w/Spring | |||
| 5.0 | 6 = 226 w/Flat Cap | ||||
| 10.0 | 7 = 226 w/Fin | ||||
| 20.0 | 8 = 226 w/Spring | ||||
| 40.0 | 16 = 213 Internal O-Ring | ||||
| 28 = 222 3-Tabs w/ Fin |
2 - When ordering with DOE Flat Gasket, gasket style “Z" is not available
3 - Stainless Steel Insert (I) Adder comes standard with the Heavy Poly Core (HP) for elements constructed with a 222 or 226 end cap.
