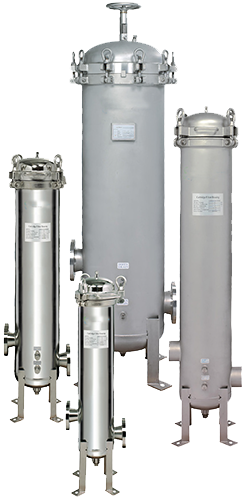

Multi Round Cartridge Liquid Filter Vessels
Ecologix Multi-Cartridge Liquid Filter Vessels (GTCH Series) are designed for a industrial and high purity applications. They are available in either 304 or 316 stainless steel and rated for 150psi service. The vessels accept DOE, 222/FLAT, and 222/FIN end cartridges in 10, 20, 30 & 40 inch lengths.
Request a Filter Vessel quote
Filter Vessel Quote RequestFeatures
- 304 & 316L stainless steel construction
- 150 PSI pressure rating standard
- Single o-ring design (Buna-N standard)
- Easy-access eye-nuts/swing-bolt closure

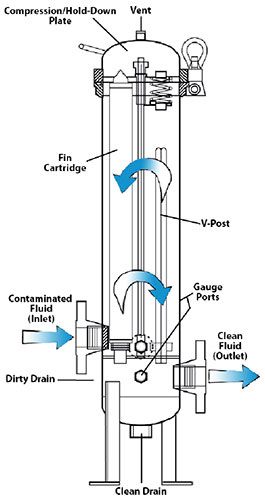

- Compression/hold-down plates to accept DOE, 222/FLAT or 222/FIN cartridges
- Heavy-duty welded angle mounting/support legs
- Bearing-assisted hand-wheel closure davit (GTCH12 & larger)
Options
- ASME Code Stamp
- CE Mark
- Electropolished Finish
- Sanitary Porting
- Alternate Seal Materials
- EPDM (required for NSF-61)
- Teflon® Encapsulated Viton®*
- Viton®*
GTCH Series - Ordering Details
| # of Cartridges | Length | Inlet/Outlet Size | Inlet/Outlet Style | Outlet | Material | Pressure Rating | Surface Finish | ASME Stamp CE Mark | NSF |
|---|---|---|---|---|---|---|---|---|---|
| 3 | 1 = 10" | 1 = 1" / DIN25 | B = BSPT | 1 = Bottom Outlet | 4 = 304 SS | 15 = 150 PSI @ 250˚F | EP = Electropolished | Blank = None | Blank = None |
| 5 | 2 = 20" | 1.5 = 1.5" / DIN40 | D = DIN | 2 = Opposite Outlet | 6 = 316L SS | GB = Glass Bead | U = ASME | MC = NSF-61 | |
| 7 | 3 = 30" | 2 = 2" / DIN50 | F = RF Flange | CE = CE Mark | |||||
| 12 | 4 = 40" | 3 = 3" / DIN80 | N = FNPT | ||||||
| 21 | 4 = 4" / DIN100 | TC = TC Ferrule | |||||||
| 36 | 6 = 6" / DIN150 | ||||||||
| 51 | 8 = 8" / DIN200 |
