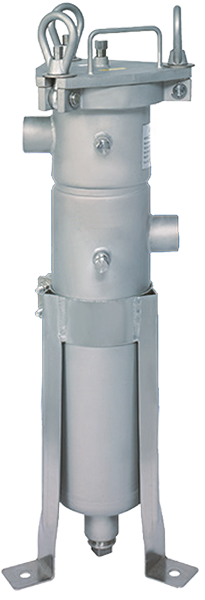

Single Bag Liquid Filter Vessels

Ecologix Single Bag Liquid Filter Vessels (GBFE4 Series) are a low flow, cost effective bag filtration solution for removal of solids from process liquid streams. Vessels are designed to a 300 PSI rating with a swing bolt closure. Vessels accept (1) #4-size filter bag.

Request a Filter Vessel quote

Filter Vessel Quote Request

Features

304 or 316L stainless steel construction with a glass bead finish
300 PSIG rating
Buna seal
Easy-access swing-bolt closure
1" NPT uni-style (side & bottom outlet) offers increased piping flexibility
Stainless steel hold-down spring
1/4" NPT vent & gauge ports
Adjustable stainless steel tripod mounting/support leg assembly
Stainless steel perforated support basket (9/64" perf. standard)

Options

Alternate Seal Materials

EPDM (required for NSF-61)
Teflon® Encapsulated Viton®*
Viton®*

NSF Certification applies for use only with drinking water. Only products bearing the NSF Mark on the product, product packaging, and/or documentation shipped with the product are Certified. Product options denoted with asterisk (*) are not included in the Certification.

Flow Rate

Model	Bag Size	Basket Depth	EFA (ft²)	Max Flow Rate (GPM)
GBFE412	4	12	1.0	50

GBFE4 Series - Ordering Details

Basket Depth	Inlet/Outlet Size	Outlet	Material	Pressure Rating	Surface Finish	NSF
12 = #4	1N = 1” FNPT	3 = Bottom & Opposite Side	4 = 304 SS	30 = 300 PSI @ 250°F	GB = Glass Bead	Blank = None
	1B = 1” BSPT		6 = 316L SS			MC = NSF-61
