Multi Cartridge Band Clamp Liquid Filter Vessels

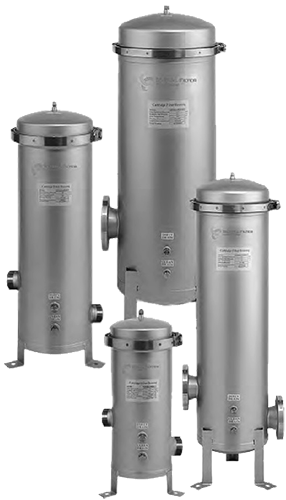

Ecologix Multi-Cartridge Liquid Filter Vessels (GTCHB Series) are designed for a industrial and commercial applications. They are available in either 304 or 316 stainless steel and rated for 150psi service. The vessels accept DOE, 222/FLAT and 222/FIN end cartridges in 10, 20, 30 & 40 inch lengths.
Request a Filter Vessel quote
Filter Vessel Quote RequestFeatures

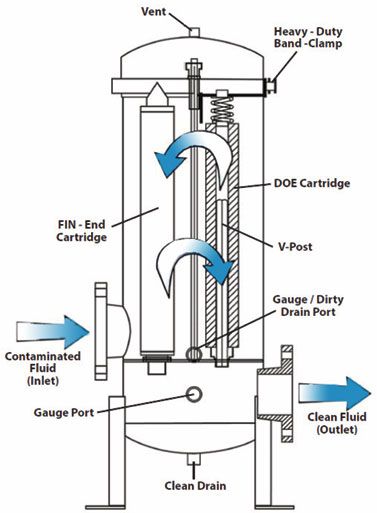

- Easy access, self-centering heavy-duty band clamp closure
- Heavy-duty welded mounting/support legs
- Single o-ring design (Buna standard)
- Universal seal cups and compression plates allow vessels to accept DOE, 222/FLAT or 222/FIN cartridges
- Poly-coat finish (exterior only)
- 316L stainless steel cap/spring assemblies and V-posts
- 150 PSI pressure rating
Options
- Sanitary Porting
- Alternate Seal Materials
- EPDM (required for NSF-61)
- Teflon® Encapsulated Viton®*
- Viton®
Ordering Details
| # of Cartridges | Length | Inlet/Outlet Size | Inlet/Outlet Style | Outlet | Material | Pressure Rating | Surface Finish | NSF |
|---|---|---|---|---|---|---|---|---|
| 4 | 1 = 10" | 2 = 2" / DIN50 | B = BSPT | 2 = Opposite Outlet | 4 = 304 SS | 15 = 150 PSI @ 250˚F | PC = Polycoat | Blank = None |
| 5 | 2 = 20" | 3 = 3" / DIN80 | D = DIN | 6 = 316L SS | MC = NSF-61 | |||
| 7 | 3 = 30" | 4 = 4" / DIN100 | F = RF Flange | |||||
| 12 | 4 = 40" | M = MNPT | ||||||
| 22 |
