48" High Multimedia Filtration Systems
Filter systems capable of 5 - 40 micron filtration of organic and inorganic solids with flow
rates from 10 - 5000 US GPM. Systems are shipped as a complete modular fully assembled skid
mounted unit.
Contact us today to for a free quote
Contact UsStandard Features
- Fully Assembled and Tested
- Skid Mounted for easy installation and levelling
- Backwash Control Panel with LCD display & PD switch
- 304SS Sight Glass
- Backwash Valves / Pneumatic or Hydraulic Operation
- Side-Access Manways
Standard Features
- Stainless Steel Removable Underdrains
- Stainless Steel Removable Solenoids
- Ductile Iron Auto Backwash Valves w/ 304SS Internals
- Inlet, Outlet & Backwash Manifolds
- Necessary Victaulic Couplings
- Electrical Wiring, Stainless Steel Enclosure & Necessary Tubing
Applications
- Mining Industry
- Pre-Filtration for RO (Reverse Osmosis)
- Oil & Fracking Water
- Construction Remediation
- Stormwater Remediation
- Municipal Process Water
- Nurseries & Greenhouses
48" Height Vessels - 20 Micron
| Model | Ft2 | Diameter | No. Of Tanks | Min Flow Rates | Max Flow Rates | Inlet | Discharge | Backwash | Media (Ft3) | Max Pressure | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| US GPM | m3/hr | US GPM | m3/hr | Anthracite | Silica Sand | Sm Gravel | Large Gravel | PSI | BAR | |||||||
| M18-48-1A | 1.77 | 18" | 1 | 18 | 4.09 | 26 | 5.90 | 3" | 3" | 3" | 2.4 | 1.5 | 0.3 | 0.6 | 125 | 8.6 |
| M18-48-2A | 3.54 | 18" | 2 | 35 | 7.94 | 54 | 12.26 | 3" | 3" | 3" | 4.7 | 2.9 | 0.6 | 1.2 | 125 | 8.6 |
| M18-48-3A | 5.31 | 18" | 3 | 53 | 12.04 | 80 | 18.7 | 3" | 3" | 3" | 7.1 | 4.4 | 0.9 | 1.8 | 125 | 8.6 |
| M24-48-1A | 3.15 | 24" | 1 | 32 | 7.27 | 47 | 10.67 | 3" | 3" | 3" | 4.2 | 2.6 | 0.5 | 1 | 100 | 6.9 |
| M24-48-2A | 6.3 | 24" | 2 | 63 | 14.31 | 95 | 21.57 | 4" | 4" | 3" | 8.4 | 5.2 | 1 | 2.1 | 100 | 6.9 |
| M24-48-3A | 9.45 | 24" | 3 | 95 | 21.57 | 142 | 32.25 | 4" | 4" | 3" | 12.6 | 7.9 | 1.6 | 3.1 | 3.1 | 6.9 |
| M24-48-4A | 12.6 | 24" | 4 | 126 | 28.61 | 189 | 42.92 | 4" | 4" | 3" | 16.7 | 10.5 | 2.1 | 4.2 | 100 | 6.9 |
| M30-48-1A | 4.91 | 30" | 1 | 49 | 11.13 | 63 | 14.30 | 3" | 3" | 3" | 6.5 | 4.1 | 0.8 | 5 | 100 | 6.9 |
| M30-48-2A | 9.82 | 30" | 2 | 98 | 22.25 | 148 | 33.61 | 4" | 4" | 3" | 13.1 | 8.2 | 1.6 | 4.9 | 100 | 6.9 |
| M30-48-3A | 14.73 | 30" | 3 | 147 | 33.38 | 221 | 50.19 | 4" | 4" | 3" | 19.6 | 12.3 | 2.5 | 7.4 | 100 | 6.9 |
| M36-48-1A | 7.1 | 36" | 1 | 71 | 16.12 | 107 | 24.30 | 4" | 4" | 4" | 9.4 | 5.9 | 1.2 | 4.7 | 80 | 5.5 |
| M36-48-2A | 14.2 | 36" | 2 | 142 | 32.25 | 213 | 48.37 | 6" | 6" | 4" | 18.8 | 11.8 | 2.4 | 9.4 | 80 | 5.5 |
| M36-48-3A | 21.3 | 36" | 3 | 213 | 48.37 | 320 | 72.68 | 6" | 6" | 4" | 28.3 | 17.7 | 3.5 | 14.1 | 80 | 5.5 |
| M48-48-1A | 12.6 | 48" | 1 | 126 | 28.61 | 189 | 42.92 | 4" | 4" | 4" | 16.7 | 10.5 | 2.1 | 8.4 | 80 | 5.5 |
| M48-48-2A | 25.2 | 48" | 2 | 252 | 57.61 | 378 | 85.85 | 6" | 6" | 4" | 33.5 | 20.9 | 4.2 | 16.7 | 80 | 5.5 |
| M48-48-3A | 37.8 | 48" | 3 | 378 | 85.85 | 568 | 129.00 | 6" | 6" | 4" | 50.2 | 31.4 | 6.3 | 25.1 | 80 | 5.5 |
| M48-48-4A | 50.4 | 48" | 4 | 504 | 114.47 | 758 | 172.16 | 8" | 8" | 4" | 67 | 41.9 | 8.4 | 33.5 | 80 | 5.5 |
| M48-48-5A | 63 | 48" | 5 | 630 | 143.08 | 945 | 214.63 | 10" | 10" | 4" | 83.7 | 52.3 | 10.5 | 41.9 | 80 | 5.5 |
| M48-48-6A | 75.6 | 48" | 6 | 756 | 171.70 | 1135 | 257.78 | 10" | 10" | 4" | 100.5 | 62.8 | 12.6 | 50.2 | 80 | 5.5 |
| M54-48-1A | 15.91 | 54" | 1 | 159 | 36.11 | 239 | 54.28 | 4" | 4" | 4" | 21.2 | 13.2 | 2.6 | 10.6 | 80 | 5.5 |
| M54-48-2A | 31.82 | 54" | 2 | 318 | 72.22 | 480 | 109.02 | 6" | 6" | 4" | 42.4 | 26.5 | 5.3 | 21.2 | 80 | 5.5 |
| M54-48-3A | 47.73 | 54" | 3 | 477 | 108.33 | 715 | 162.39 | 6" | 6" | 4" | 63.6 | 39.7 | 7.9 | 31.8 | 80 | 5.5 |
| M54-48-4A | 63.64 | 54" | 4 | 636 | 144.45 | 955 | 216.90 | 8" | 8" | 4" | 84.8 | 53 | 10.6 | 42.4 | 80 | 5.5 |
| M54-48-5A | 79.55 | 54" | 5 | 795 | 180.56 | 1195 | 271.41 | 10" | 10" | 4" | 106 | 66.2 | 13.2 | 53 | 80 | 5.5 |
| M54-48-6A | 95.46 | 54" | 6 | 954 | 216.67 | 1435 | 325.92 | 10" | 10" | 4" | 127.2 | 79.5 | 15.9 | 63.6 | 80 | 5.5 |
| M54-48-7A | 111.37 | 54" | 7 | 1113 | 252.79 | 1675 | 380.43 | 10" | 10" | 4" | 148.4 | 92.7 | 18.5 | 74.2 | 80 | 5.5 |
| M54-48-8A | 127.28 | 54" | 8 | 1272 | 288.90 | 1915 | 434.94 | 10" | 10" | 4" | 169.6 | 106 | 21.2 | 84.8 | 80 | 5.5 |

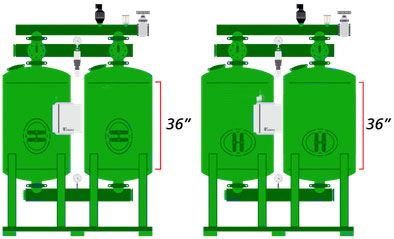

Multimedia Filter Scaling
A comparison of the available filter heights.
Available Options
- ASME Code Vessels
- Stainless Steel 304SS or 316SS
- High Pressure 90+ PSI
- PLC Integration
- Electric Valve Operation
- NEMA 4X Enclosure
- Custom Piping Design
Advantages
- Our filtration systems provide exceptional results, rigorously tested and tuned for industrial applications
- Self cleaning backwash features use water internal to the system
- Industrial grade stainless steel solenoids versus industry standard plastic solenoids
- 80 PSI max standard operating capable
- SS304 backwash control enclosure versus industry standard carbon steel or plastic
- Fabricated backwash manifolds
