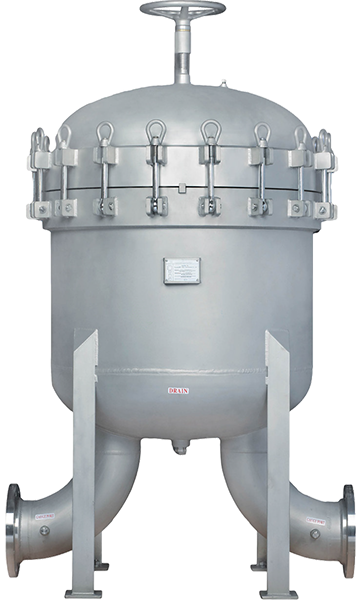

Multi Bag Liquid Filter Vessels

Ecologix Multi Bag Liquid Filter Vessels (GMBV Series) are a designed for high flow and/or high contaminant load applications where clean effluent is critical. Vessels are designed with a V-Ring design with a positive snap that guards against by-passes to deliver clean effluent. The Multi-Bag Vessel can hold 4, 6, 8 or 12 bags.

Request a Filter Vessel quote

Filter Vessel Quote Request

Features

Heavy-duty welded angle mounting/support legs
RF Flanged "inline” inlet/outlet connections
Bearing-assisted hand-wheel closure
Permanent compression/hold-down plate
Stainless steel support baskets (9/64” standard)
Easy-access eye-nut/swing-bolt closure
304 or 316 stainless steel construction
Snap-fit V-ring bag seal design
150 PSI pressure rating
Single o-ring seal (Buna-N standard)

Options

ASME Code Stamp
CE Mark (SS only)
Electropolished Finish (Stainless Steel Only)
Mesh-lined/perforated baskets
Alternate Seal Materials
- EPDM (required for NSF-61)
- Teflon® Encapsulated Viton®*
- Viton®*

NSF Certification applies for use only with drinking water. Only products bearing the NSF Mark on the product, product packaging, and/or documentation shipped with the product are Certified. Product options denoted with asterisk (*) are not included in the Certification.

Flow Rate

Model	# of Bags	Bag Size	Basket Depth	EFA (ft²)	Max Flow Rate (GPM)*
GMBV430	4	#2	30"	17.6	600
GMBV630	6	#2	30"	26.4	1200
GMBV830	8	#2	30"	35.2	1600
GMBV1230	12	#2	30"	57.8	2400

* Is the maximum flow rate recommended through the vessel without a filter bag installed (using water). Any increase in viscosity and/or the installation of filter bags will reduce these flow rates significantly. Please refer to the appropriate bag filter sizing chart or consult with your Global Filter representative when sizing.

GMBV Series - Ordering Details

# of Bags/Baskets	Basket Depth	Inlet/Outlet Size	Inlet/Outlet Style	Material	Pressure Rating	Surface Finish	ASME Stamp CE Mark	NSF
4	30 = 30"	4 = 4" / DIN100	D = DIN Flange	4 = 304SS	15 = 150 PSI @ 250˚F	GB = Glass Bead (SS Only)	Blank = None	Blank = None
6		6 = 6" / DIN150	F = RF Flange	6 = 316SS			U = ASME	MC = NSF-61
8		8 = 8” / DIN200					CE Mark (SS Only)	MC = NSF-61
12

Multi Bag Liquid Filter Vessel Flow Diagram
