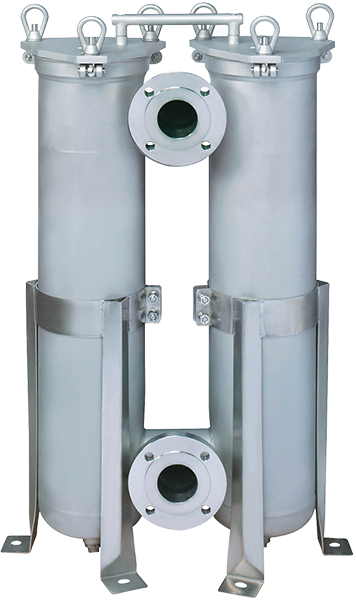

Twin Capacity Bag Liquid Filter Vessels
Ecologix Twin Capacity Bag Liquid Filter Vessels (GBFV82 Series) are a low flow, cost effective bag filtration solution for removal of solids from process liquid streams. Vessels are designed with a V-Ring design with a positive snap that guards against by-passes to deliver clean effluent. Two vessels provide the flow and loading of a multiple bag vessel at an affordable cost.
Request a Filter Vessel quote
Filter Vessel Quote RequestFeatures
- 304 or 316L stainless steel construction options
- 150 PSI pressure rating standard
- Snap-fit V-ring bag seal design
- Single o-ring seal (Buna standard)
- Two identical GBFV830 vessels working in tandem
- Adjustable tripod mounting/support leg assemblies
- High flow rates and loading capacity at low pressure drops
- Stainless steel support baskets (9/64” standard)
- Two easy-access eye-nut/swing-bolt closures with single handle
- RF or DIN Flanged inlet/outlet connections (same side and opposite side options available)
Flow Rate
| Model | Bag Size | Basket Depth | EFA (ft2) | Max Flow Rate (GPM) |
|---|---|---|---|---|
| GBFV8230 | #2 | 30 | 8.8 | 400 |
GBFV82 Series - Ordering Details
| Basket Depth | Inlet/Outlet Size | Inlet/Outlet | Outlet | Material | Pressure Rating | Surface Finish | ASME Code Stamp/CE Mark | NSF |
|---|---|---|---|---|---|---|---|---|
| 30 = #2 Size | 3 = 3” | DN = DIN Flange | 2 = Opposite Side | 4 = 304 SS | 15 = 150 PSI @ 250˚F | EP = Electropolished | Blank = None | Blank = None |
| 4 = 4" | F = RF Flange | 5 = Same Side | 6 = 316L SS | GB = Glass Bead | U = ASME | MC = NSF-61 | ||
| CE Mark |
