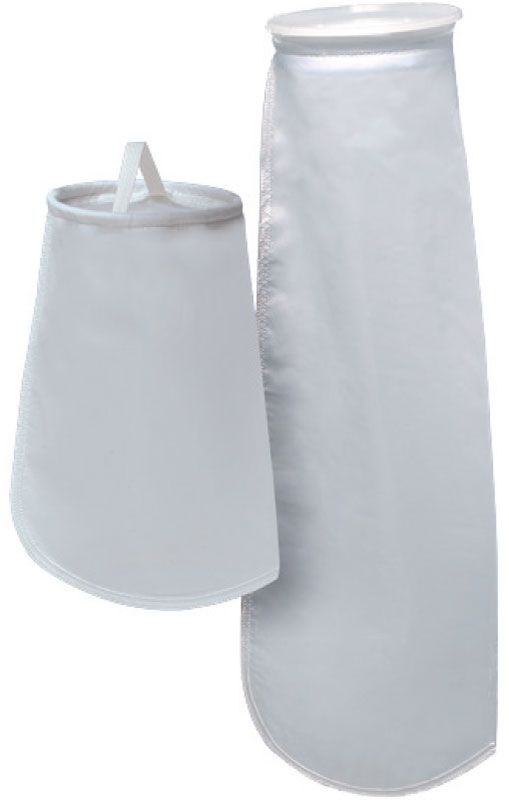

Standard Mesh Liquid Filter Bags
Ecologix Standard Mesh Liquid Filter Bags are available in a variety of styles and sizes, including Multifilament or Monofilament mesh material with galvanized steel ring or high temperature snap seal rings sewn into the top bag.
Request a Bag Filter quote
Bag Filter Quote RequestFeatures
- Micron ratings from 1 to 1500
- All industry-standard and custom sizes available
- High flow/low pressure drop media

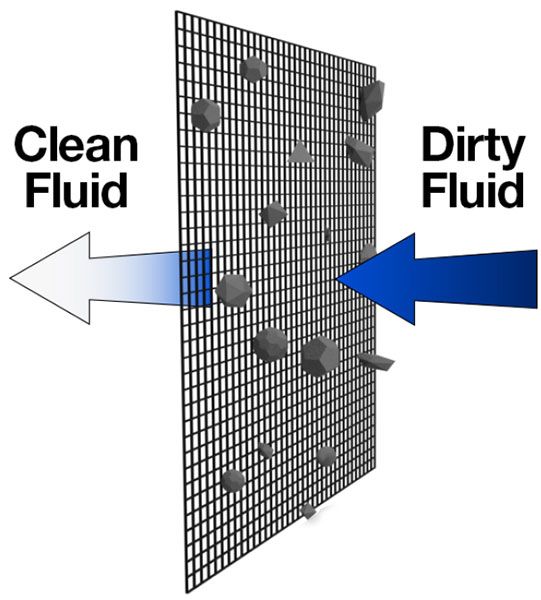

- Surface-retention filtration
- Wide chemical compatibility
- Sewn construction
- Handles standard on all bags
- Non-fiber shedding
- High removal efficiency
- Temperature ratings to 400°F (204°C)
- Silicone-free construction
- Economical removal of non-deformable contaminants
- Choice of steel or molded plastic snap seal rings
- Meet FDA regulations for contact under Title 21, Section 177.1520
Mesh Bag Styles
- S-Ring Bags: These bags feature a galvanized steel ring (with an optional stainless steel variant) sewn into the top. They come with standard sewn seams.
- V-Ring Bags: These bags are equipped with a specially designed, high-temperature snap seal ring sewn into the top. They also come with standard sewn seams.
Mesh Bag Materials
- Monofilament Mesh media is woven from threads made of larger fibers. Bags made from this material are high cost and disposable.
- Monofilament Mesh media is woven from single-fiber threads. The openings are square and uniform. Bags made from this material have excellent strength and some are cleanable.
Materials / Ratings
| Material | Rating (µ) | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 5 | 10 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 400 | 600 | 800 | 1000 | 1500 | |
| NMO | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| POMO | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||||
| PEMU/NMU | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||
Standard Mesh Liquid Filter Bags - Ordering Details
| Media | Rating (µ) | Cover/Jacket | Bag Dimensions | Ring Style | Options | ||
|---|---|---|---|---|---|---|---|
| Size | Diam. | Length | |||||
| NMO = Nylon Monofilament1 | 1 - 1500 | Plain (No Cover) | C = Commercial Type Snap Steel Band | A = Automotive Seam | |||
| POMO = Polypropylene Monofilament | 1 | 7.06" | 32.0" | PP = Polypropylene (rolled) | DS = Draw-String | ||
| PEMU = Polyester Multifilament | 2 | 7.06" | 32.0" | S = Standard Steel Ring | EB = Edge Binding | ||
| NMU = Nylon Multifilament | 3 | 4.12" | 8.0" | SS = Stainless Steel Ring | NR = No Ring | ||
| 4 | 4.12" | 14.0" | V = High-temp Plastic Snap Seal | RC = Rev. Collar (S & SS only) | |||
| 7 | 5.5" | 15.0" | |||||
| 8 | 5.5" | 20.0" | |||||
| 9 | 5.5" | 31.0" | |||||
| C1 | 7.31" | 16.5" | |||||
| C2 | 7.31" | 32.5" | |||||
| C3 | 8.0" | 16.5" | |||||
