Single Cartridge Liquid Filter Vessels

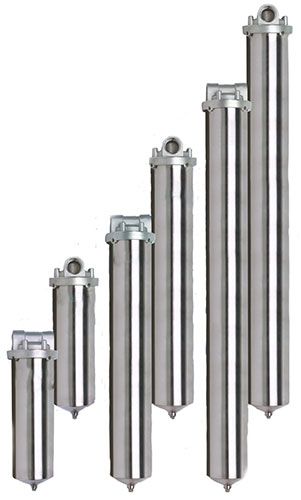

Ecologix Single Cartridge Liquid Filter Vessels (GFHD Series) are designed for a variety of filtration applications. The filter vessels feature a ring nut closure for easy cartridge change out. They are available in either 304 or 316 stainless steel and rated for 300psi service.
Request a Filter Vessel quote
Filter Vessel Quote RequestFeatures

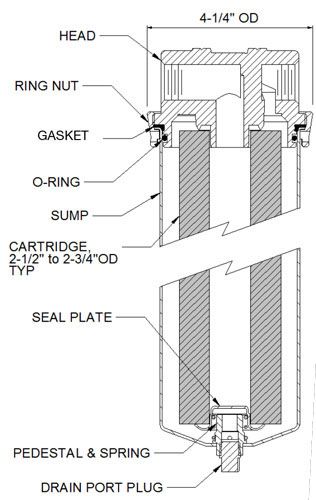

- DOE design features a spring-loaded bottom seat cup which allows for easy installation and positive seal
- Ring-nut allows for easy change-out (wrench pin is included as standard, spanner wrench is optional)
- 3/4" and 1" inlet and outlet available in NPT and BSPP for ease of installation
- 1/4" NPT dirty drain port allows for complete evacuation prior to change-out
- Available in 5", 10", 20", 30" lengths to accept cartridges up to 3" OD
- 304 or 316 stainless steel construction (passivated finish)
- Offered in DOE, 222/FLAT* or 226/FLAT* configurations
- Heavy-duty cast head with mounting bracket
- Dual closure seal (EPDM standard)
- 300 PSI pressure rating
- Inline port design
- Optional 1/4" gauge ports drilled & tapped
GFHD Series - Ordering Details
| Length | Inlet/Outlet Size | End Configuration | Material | Pressure Rating | NSF | Adders |
|---|---|---|---|---|---|---|
| 05 = 5” | 75N = 3/4” FNPT | D = DOE | 4 = 304 SS | 30 = 300 PSI | Blank = None | 25GP = Gauge Ports |
| 1 = 10” | 1N = 1” FNPT | 2 = 222/FLAT* | 6 = 316 SS | |||
| 2 = 20” | 75B = 3/4” BSPP** | 6 = 226/FLAT* | ||||
| 3 = 30” | 1B = 1” BSPP** |
* Available in 316 SS only ** Available in 304 SS only
