Standard Felt Liquid Filter Bags

Ecologix Standard Felt Liquid Filter Bags are constructed with 100% synthetic fibers in polypropylene, polyester and Nomex®. The materials meet regulations for food contact and are and economical filtration media.

Features

• Micron ratings from 1 to 200
• All industry-standard and custom sizes available
• Broad chemical compatibility
• High flow/low pressure drop media
• Sewn or fully-welded construction
• Handles standard on all bags
• Choice of steel or molded plastic snap seal rings
• Temperature ratings to 275°F (PE w/S, SS or V-seal ring) and 425°F (HT w/S or SS ring)

Felt Bag Styles

• S-Ring Bags: These bags feature a galvanized steel ring (with an optional stainless steel variant) sewn into the top. They come with standard sewn seams.
• V-Ring Bags: These bags are equipped with a specially designed, high-temperature snap seal ring sewn into the top. They also come with standard sewn seams.

Felt Bag Materials

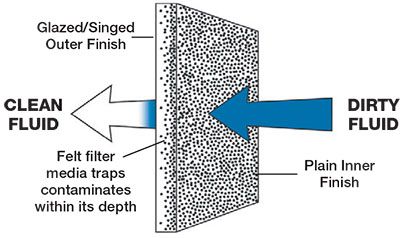

Constructed with 100% synthetic fibers in polypropylene, polyester and Nomex®. The proper combination of fiber diameters, weights and thicknesses result in economical depth filter medias. Polypropylene & polyester bags are supplied with a singed or glazed finish to reduce fiber migration.

• Polypropylene and Polyester materials meet the regulations for food contact use under FDA CFR21, Section 177.1520 and EU No. 10/2011, 1935-2004
• Glazed/singed finish on polyester & polypropylene reduces fiber-shedding
• Ability to remove both solid and gelatinous particles
• Silicone-free construction
• High dirt holding capacity
• Low cost

Welded Construction

Fully-welded bags are available in glazed polypropylene and singed polyester felt, in #1 & #2 sizes with V-seal molded plastic rings.

• No needle holes, thus increasing efficiencies by preventing by-pass
• Elimination of threads further reduces fibershedding

Materials / Ratings

Standard Felt Liquid Filter Bags - Ordering Details
