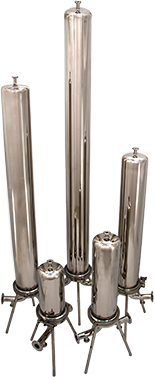

Single Cartridge Sanitary Liquid Filter Vessels
Ecologix Single Cartridge Liquid Filter Vessels (GSTL Series) for Sanitary applications are designed for a variety of sanitary filtration applications. The filter vessels are available in 316 stainless steel and rated for 150psi service.
Request a Filter Vessel quote
Filter Vessel Quote RequestFeatures
- Sanitary V-band closure operates easily and seals tightly
- Excellent cleanability with crevice-free welding and internal mirror electropolished (EP) finish
- Suitable for steam-in-place (SIP) and clean-in-place (CIP) processes
- Designed for 222 or 226 cartridge end cap configuration
- Standard with 1” TC inlet and outlet and 1/2” TC vent
- 1/2” TC inlet side drain port allows for complete evacuation prior to change-out
- Available in 5”, 10“, 20”, 30“ and 40” lengths
- 316 stainless steel construction
- Silicone seal (standard)
- 150 PSI pressure rating at 200° F
- T-style port design
Applications
- High-purity water systems
- Active Pharmaceutical Ingredients
- Fine chemicals
- Wine, beer & spirits
- Blood & serum
- Cell culture media & diagnostics

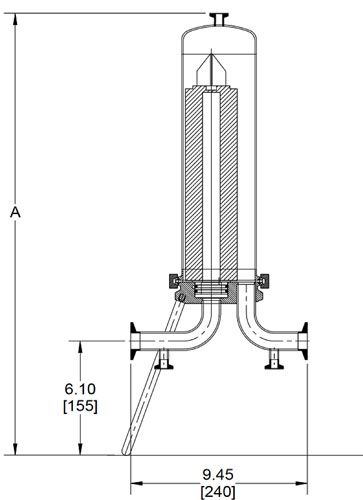

Sizes Available
| Nominal Length | OAL "A" |
|---|---|
| 5" | 18.7" (475mm) |
| 10" | 23.6" (600mm) |
| 20" | 33.5" (850mm) |
| 30" | 43.3" (1,100mm) |
| 40" | 53.2" (1,350mm) |
